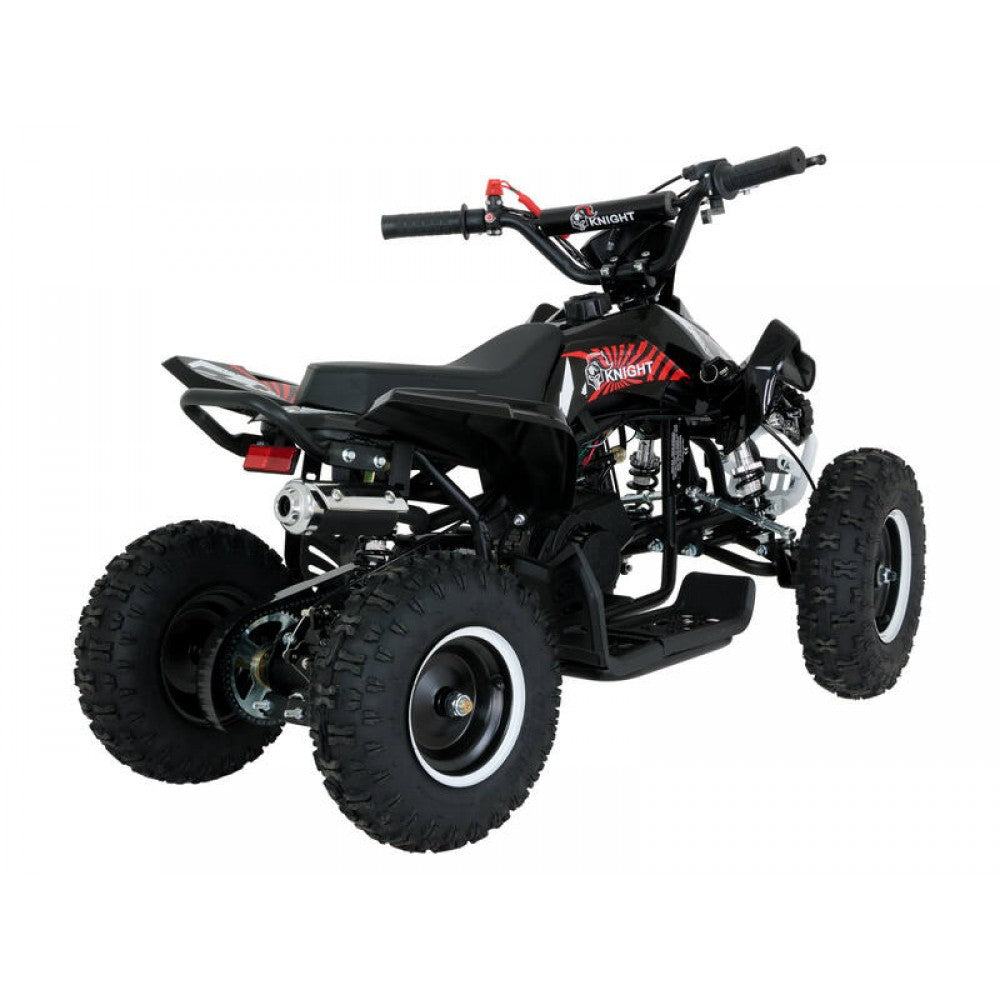

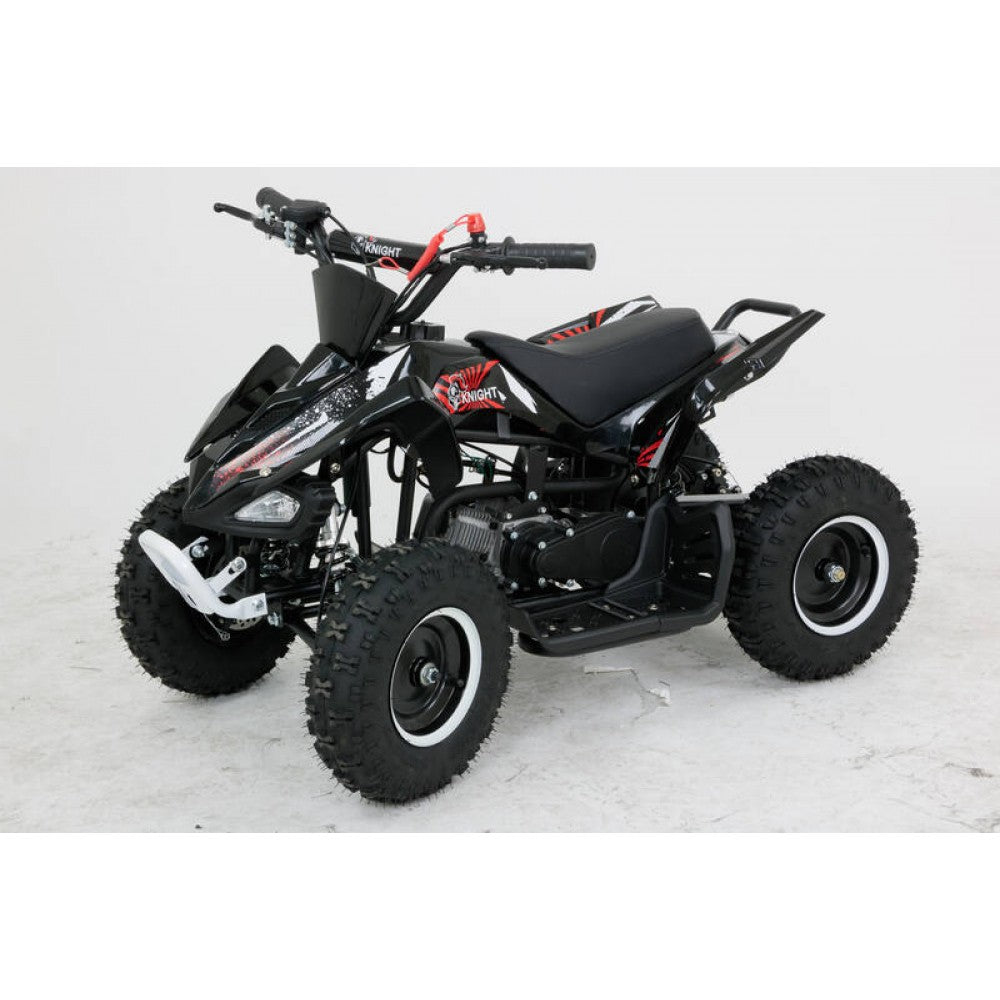

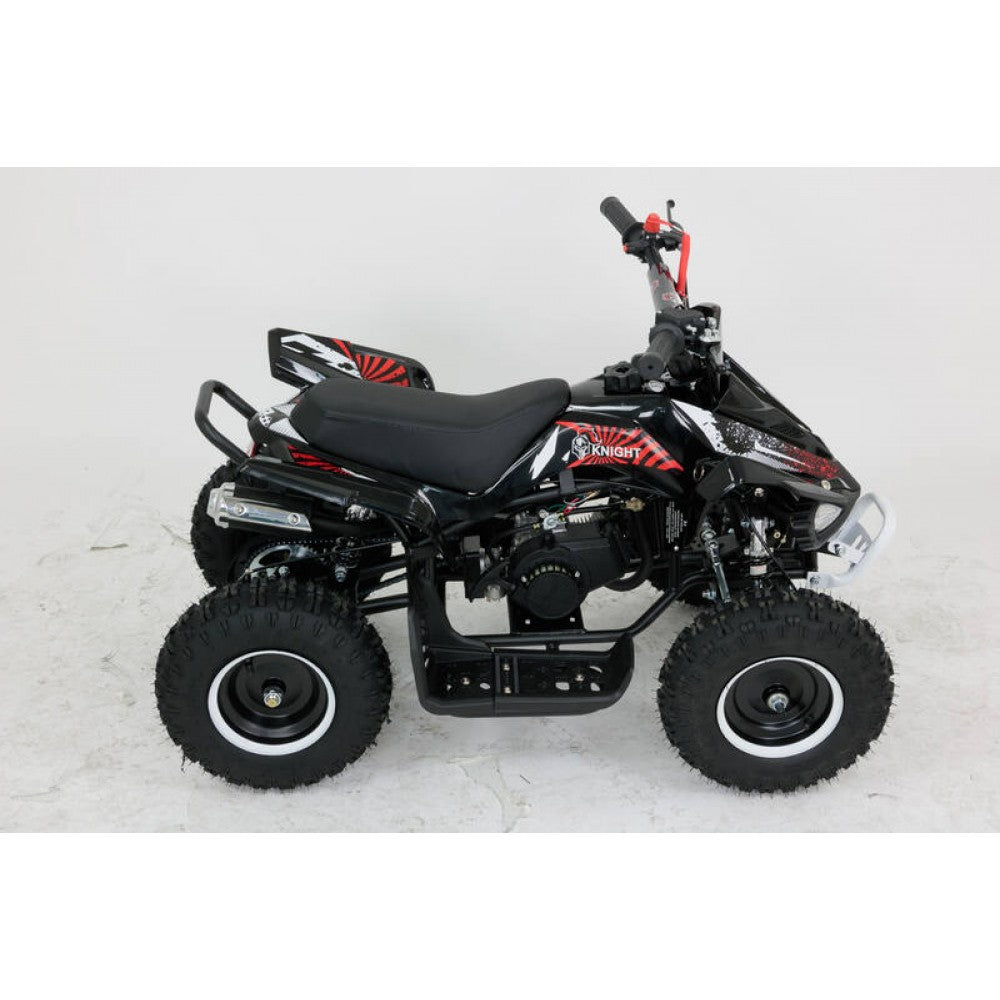

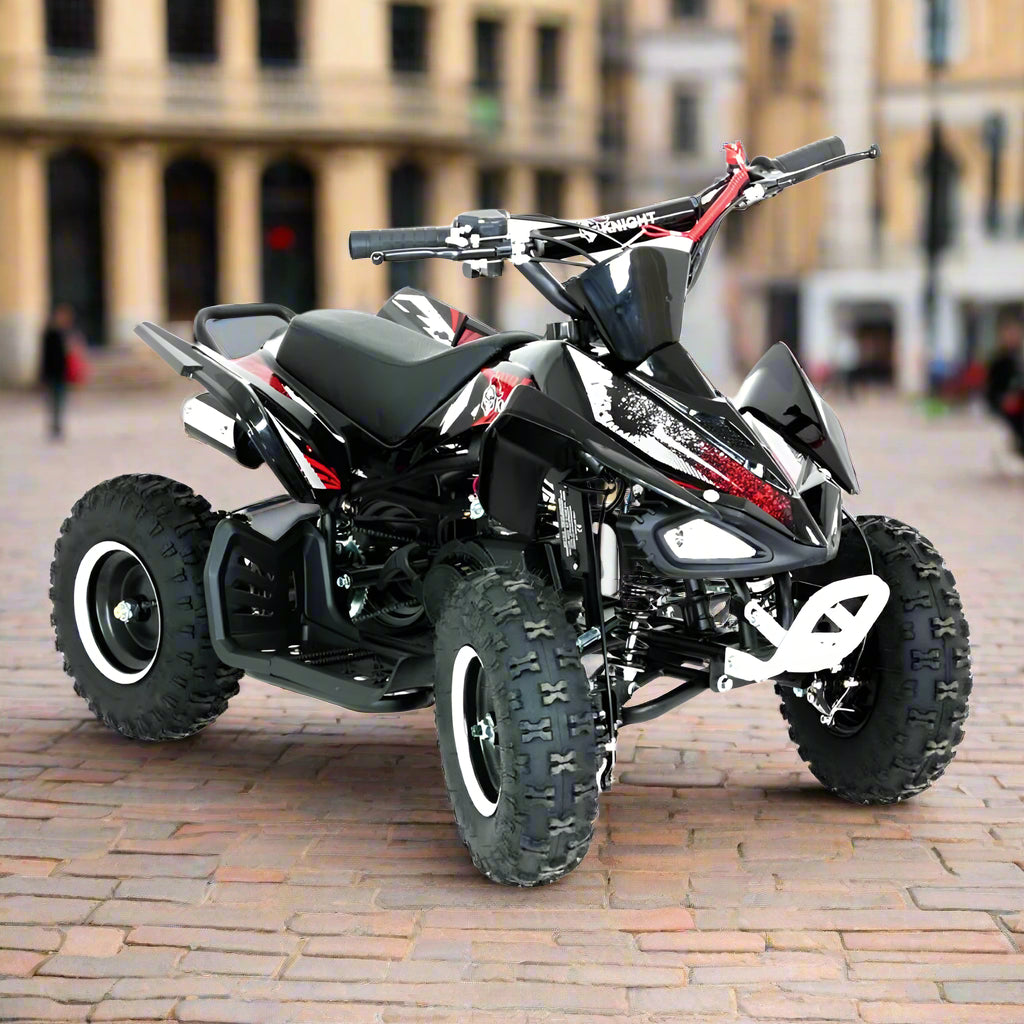

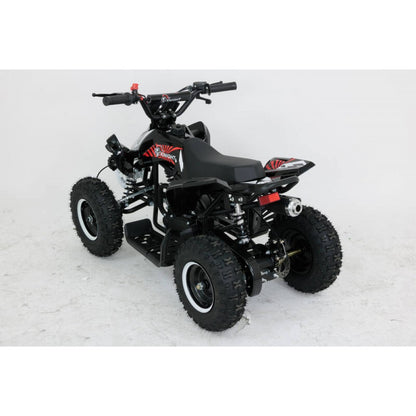

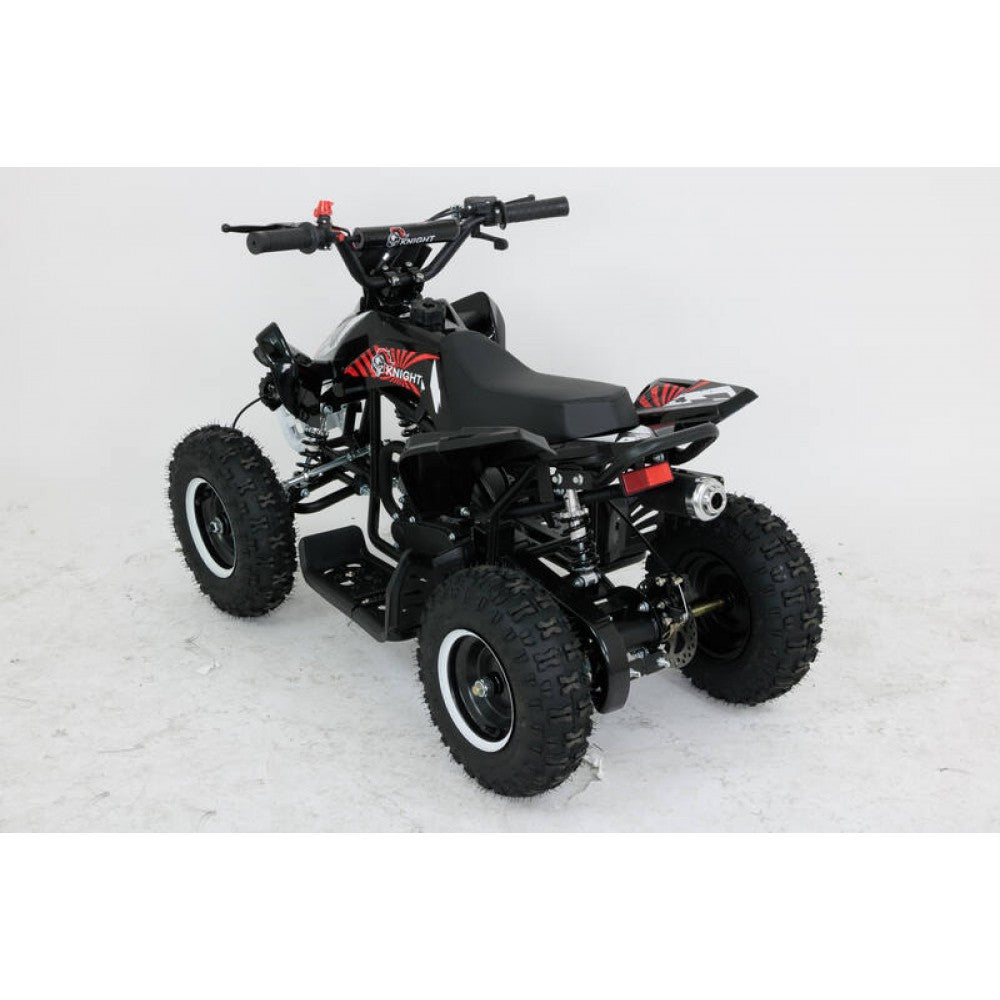

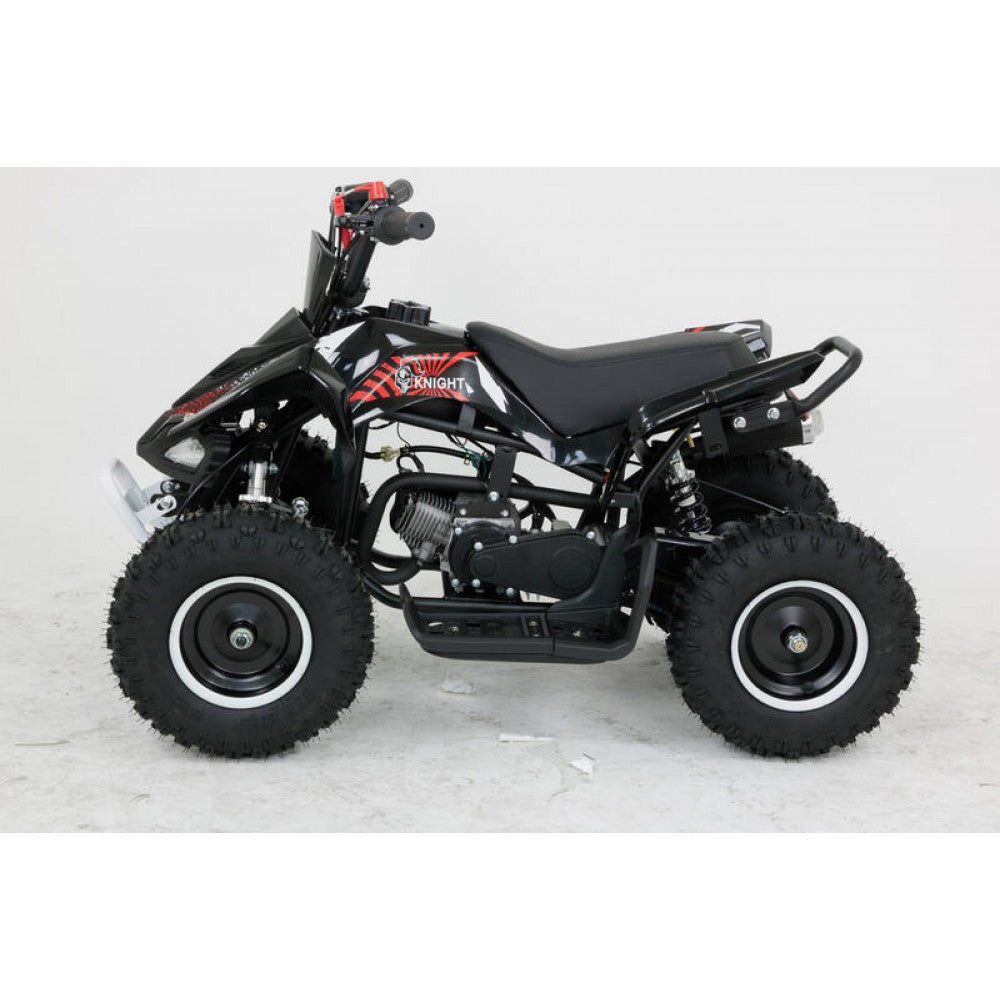

49cc Quad Bike 2-Stroke Petrol Easy Pull Start 6" Tyres - Assembled

49cc Mini Quadbike Kids Midi ATV Offroad Pocket Bikes
KNIGHT


>>> Pre-Assembled - Collection Only from Savebarn Otahuhu - approx. 5 Working Days Lead Time from Date of Payment.


A rugged kid's 49cc Mini Quad Bike with a high performance 2 Stroke Air Cooled Single Cylinder 49cc Engine, Chunky ATV Tyres and Disc Brakes all round.

Ideal for kids and great safety features such as an adjustable throttle limiter, emergency kill switches and a chain cover all help to keep this as safe as possible for kids to ride, parental supervision recommended.

Two Safety Cut-out Switches, 1x push button switch on handle bars and also 1x leash style cord to attach to the rider so if the rider hops off, the cord is pulled and the motor stops.

Includes an "Easy Pull" Pullstart which is not only easier to pull but also makes it easier to start the bike.

Not suitable for use on Sand or in Water.

FEATURES:
Colour: Red & Black
Max Load Rating: 40kg
Engine: 49cc, 2 Stroke, Air Cooled, Single Cylinder
Transmission: Automatic with Centrifugal Clutch
Start Mode: Easy-pull Pull Start
Safety Flame Out Switches
Fuel Tank Capacity: 1000ml
Max Speed: 32km/h
Front and Rear Disc Brakes
Full Suspension with Double Front Shocks
6" Front Tyres: 4.10-6
6" Rear Tyres: 13x5.00-6
Power Output: 2.5Kw / 8000rpm
Max Torque: 3.5 Nm / 6400rpm
Displacement: 44ml
Fuel: Petrol Mixed 2-Stroke Engine Oil (25:1)
Compression: 7.5:1


BASIC MEASUREMENTS:
Overall Length: 1050mm
Overall Width: 560mm
Seat Height: 530mm
Handle Bar Height: 670mm
Wheel Size (F/R): 4.10-6

        25:1 FUEL MIX volume examples
       Fuel(ml)    Oil(ml)    Total(ml)    Total(ltr)
1.    500           20          520            0.52
2.    750           30          780            0.78 **
3.    1000         40          1040          1.04
4.    2000         80          2080          2.08
5.    4800         192        4992          4.99    (for 5ltr holding can)
6.    9600         384        9984          9.99    (for 10ltr holding can)
       **  Quadbike fuel tank size is 800ml
         If mixing for only 1 full  tank, see 2.

BRAND NEW PRODUCT
30day Parts only Warranty

Please view Save Barns contact profile page for store details & information.

CODE: QUAD018RB
Weight: 33kg
CBM: 0.26 HT (980x550x480)
