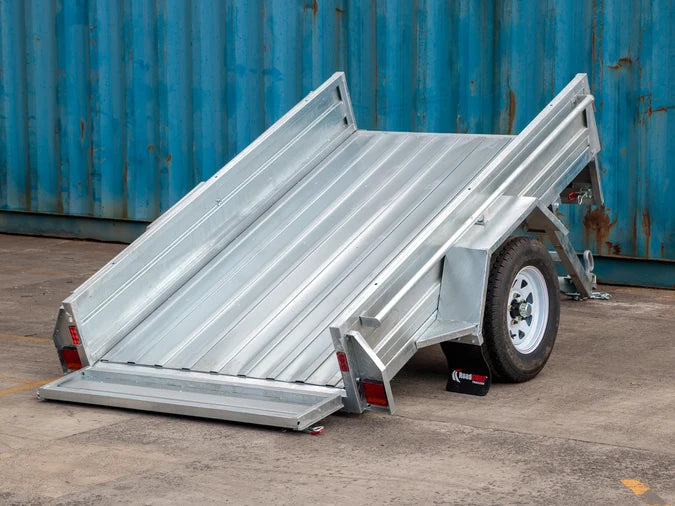

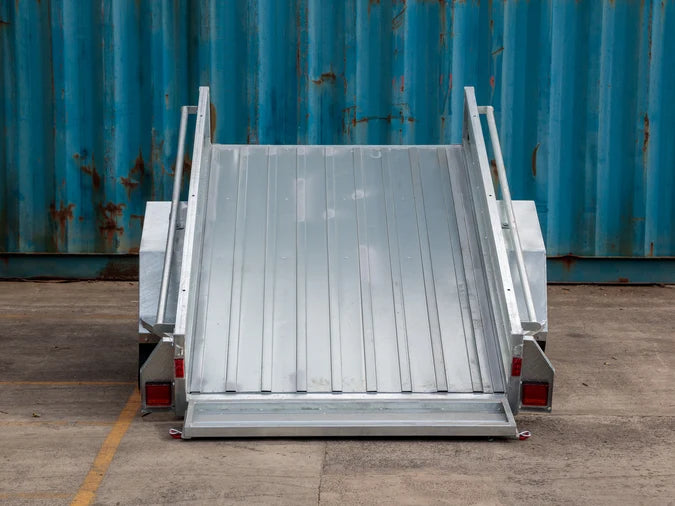

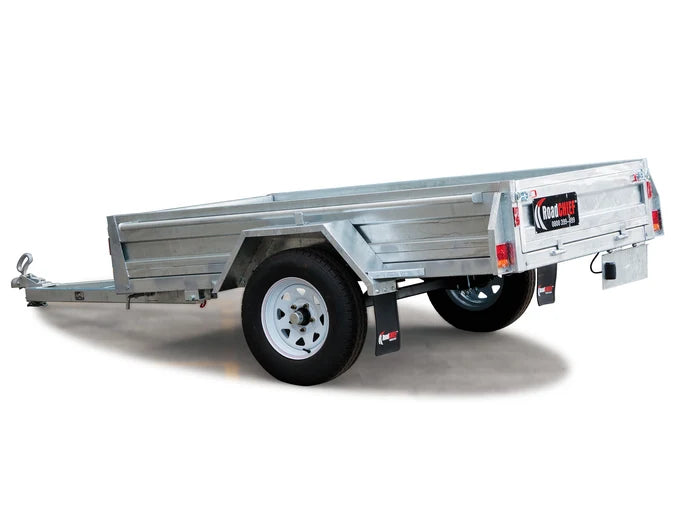

Trailer 8x4 Tilting Deck (No Cage) with Jockey Wheel
Trailer 8x4 Tilting Deck (No Cage) with Jockey Wheel
Regular price
$2,308.00 NZD
Regular price
Sale price
$2,308.00 NZD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Save BIG @ Big Bazaar with our Great Range of Hospitality & Commercial Kitchen Equipment!
GALVANIZED 8 x 4 Single Axle Boxed Sided Tilt Trailer with Jockey Wheel
ROADCHIEF
>>> LISTING IS FOR A BOX SIDE TRAILER - NO CAGE
You can buy:
KITSET option: $1,964.00
ASSEMBLED option: $2,099.00
KITSET option: $1,964.00
ASSEMBLED option: $2,099.00
>>> Photo Shows an Assembled Trailer, Kitset and Assembled Prices Listed.
Tilting Tray
LED Lighting
Jockey Wheel
>>> Optional removable trailer cage available.
LOAD CAPACITY: 750kg
GTM: 1100kg
FEATURES:
Jockey Wheel with U-Bolt Kit
Galv Mud Flaps
Heavy Duty Draw Bar
Tie Down Rails on Each Side
NZ Standard 7 Pin Flat Style Plug
NZ Style 1-7/8" Coupling and Safety Chain
Hot Dipped Galvanized Steel Construction
2x 13" Rims with 165R13C Tyres
5 Leaf Slipper Spring Suspension
Spare Wheel Holding Position on Drawbar (spare wheel not included)
Folding / Removable Front & Rear Tailgates
Galv. Floor with 50mm x 30mm Box Section Supports spaced 600mm apart (centres)
Includes All Wiring and Lights required for WOF.
BASIC DIMENSIONS:
Ground to Top of Tray: 480mm
Internal Tray: 2400mm long x 1220mm wide x 300mm high
Draw Bar: 1420mm long (70mm x 50mm Box Steel)
NB: Requires WOF & Registration.
Galv Mud Flaps
Heavy Duty Draw Bar
Tie Down Rails on Each Side
NZ Standard 7 Pin Flat Style Plug
NZ Style 1-7/8" Coupling and Safety Chain
Hot Dipped Galvanized Steel Construction
2x 13" Rims with 165R13C Tyres
5 Leaf Slipper Spring Suspension
Spare Wheel Holding Position on Drawbar (spare wheel not included)
Folding / Removable Front & Rear Tailgates
Galv. Floor with 50mm x 30mm Box Section Supports spaced 600mm apart (centres)
Includes All Wiring and Lights required for WOF.
BASIC DIMENSIONS:
Ground to Top of Tray: 480mm
Internal Tray: 2400mm long x 1220mm wide x 300mm high
Draw Bar: 1420mm long (70mm x 50mm Box Steel)
NB: Requires WOF & Registration.
