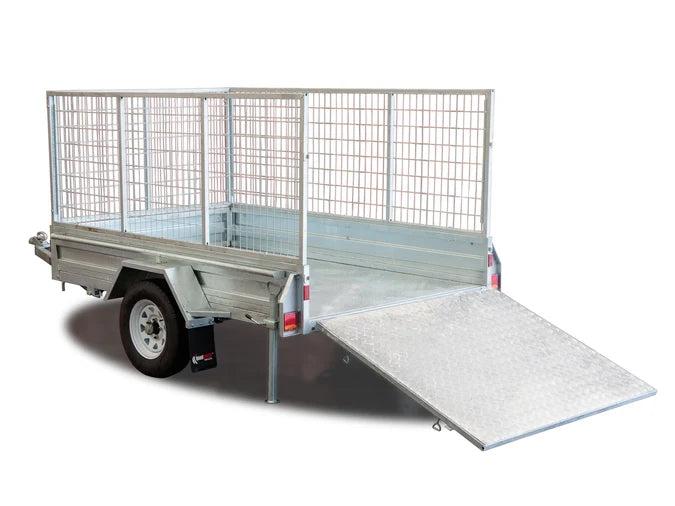

Trailer 8x5 Single Axle Rear Loading Ramp with 900mmH Cage
Trailer 8x5 Single Axle Rear Loading Ramp with 900mmH Cage
Regular price
$3,298.00 NZD
Regular price
$1,099.00 NZD
Sale price
$3,298.00 NZD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GALVANISED 8 x 5 Single Axle Caged Box Tipper Rear Ramp Trailer with Jockey Wheel
ROADCHIEF
Make loading and unloading a breeze with this 8x5 Single Axle Caged Trailer with Rear Ramp and Rear Supporting Stays / Legs.
Cage is removable and the trailer is hot dip galvanised for long life.
You can buy:
KITSET option: WAS $2,864.00
ASSEMBLED option: WAS $2,999.00
ROADCHIEF TRAILERS

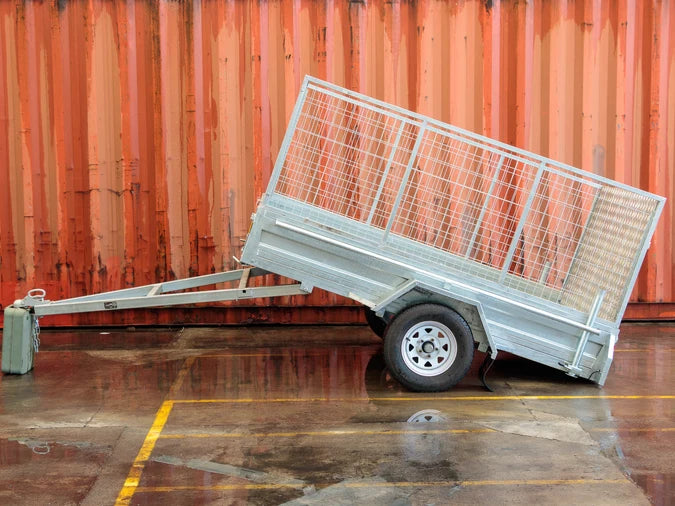

Tilting Tray
LED Lighting
Jockey Wheel
LOAD CAPACITY: 750kg
GTM: 1100kg

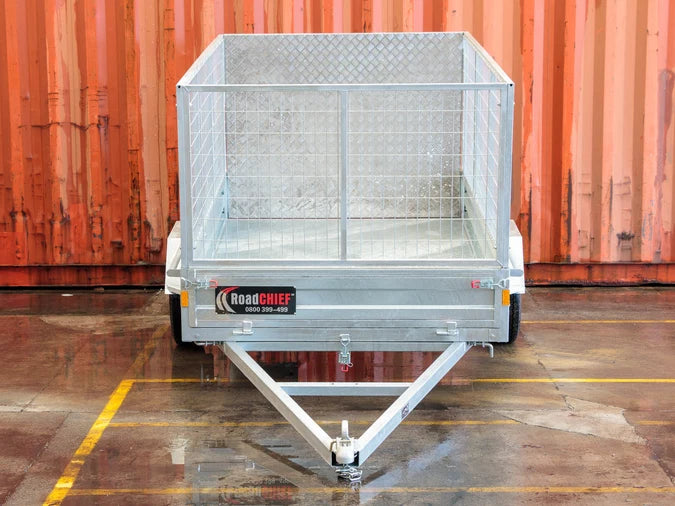

>>> Photo Shows an Assembled Trailer, Kitset and Assembled Prices Listed.
FEATURES:
Jockey Wheel with U-Bolt Kit
Heavy Duty Draw Bar
Hinged Rear Ramp / Door
Rear Supporting Stays / Legs
Hinged Front Panel
Tie Down Rails on each side
Galv Mud Guards
Removable / Bolted Cage
NZ Standard 7 Pin Flat Style Plug
NZ Style 1 7/8" Coupler with Safety Chain
Hot Dipped Galvanized Steel Construction
LED Lights
2x 13" Rims with 165R13C Tyres
Spare Wheel Holding Position on Drawbar (spare wheel not included)
Galv. Floor with 50mm x 30mm Box Section Supports spaced 400mm apart (centres)
Includes All Wiring and Lights required for WOF.
BASIC DIMENSIONS:
Ground to Top of Cage: 1690mm high
Ground to Top of Tray (no cage): 500mm
Internal Tray: 2400mm long x 1530mm wide
Cage: 2460mm long x 1600mm wide x 900mm high
Draw Bar: 1550mm long (70mm x 50mm Box Steel / 4mm Thickness)
Rear Ramp: 1200mm long x 1510mm wide
Heavy Duty Draw Bar
Hinged Rear Ramp / Door
Rear Supporting Stays / Legs
Hinged Front Panel
Tie Down Rails on each side
Galv Mud Guards
Removable / Bolted Cage
NZ Standard 7 Pin Flat Style Plug
NZ Style 1 7/8" Coupler with Safety Chain
Hot Dipped Galvanized Steel Construction
LED Lights
2x 13" Rims with 165R13C Tyres
Spare Wheel Holding Position on Drawbar (spare wheel not included)
Galv. Floor with 50mm x 30mm Box Section Supports spaced 400mm apart (centres)
Includes All Wiring and Lights required for WOF.
BASIC DIMENSIONS:
Ground to Top of Cage: 1690mm high
Ground to Top of Tray (no cage): 500mm
Internal Tray: 2400mm long x 1530mm wide
Cage: 2460mm long x 1600mm wide x 900mm high
Draw Bar: 1550mm long (70mm x 50mm Box Steel / 4mm Thickness)
Rear Ramp: 1200mm long x 1510mm wide
NB: Requires WOF & Registration.
CODE: TR85CSR2
